The flip louvered pavilion is a new type of outdoor leisure and entertainment facility, also known as an ecological sunroom. The aluminum alloy pavilion has excellent functions such as sunshade, rain protection, snow resistance, and durability. Its structure is solid and durable, and the surface is coated with high-density powder spraying, which is rust-proof and non-fading, requiring no maintenance for 20 years.
The design of its flip-up top panel distinguishes it from traditional glass sunrooms, eliminating the drawbacks of stuffiness and poor ventilation. By controlling the flipping angle of the shutters, it achieves air intake and lighting for the pavilion. The pavilion adopts a double-layer hidden drainage system, where rainwater is drained from the top of the pavilion through internal water channels and columns.
Moreover, aluminum alloy pavilions can also be combined with equipment such as doors, windows, windproof roller shutters, light strips, fan lights, and heating equipment to form a multi-functional ecological sunroom, allowing users to fully enjoy a comfortable outdoor life.
Product Advantage
1.Extra large opening angle
The opening and closing angle of the blades reaches 90 degrees, allowing the shading degree and air intake volume to be adjusted according to needs.
2.Double-layer blades with water grooves
The shutters adopt a double-layer structure and are equipped with water guide grooves. Rainwater flows from the blade grooves into the inner grooves. Even if the shutters are opened after heavy rain, the rainwater will flow from the blades into the grooves without dripping.
3.Invisible drainage
The invisible drainage system allows rainwater to flow from the top of the louver into the inner water tank, then into the column, and finally be discharged through the ground.
4.Flat load 110 kg
The columns are larger and thicker, the beams are larger and thicker, and the blades are wider and thicker. Made of genuine aluminum alloy, the structure is stable and does not sway in strong winds. It can resist snow pressure up to 110 kg per square meter.
5.Aluminum alloy & powder coating
Made of high-quality 6063 aluminum alloy, it integrates strong wind pressure resistance, corrosion resistance, and deformation resistance. The surface is coated with high-density powder, featuring no rust, low maintenance, safety and environmental protection, and no fading for 20 years.
6.Dual drainage system
It can effectively prevent surrounding rainwater from splashing, and the top surface can withstand rainfall with a duration of 2 minutes and an intensity as high as 40-50 milliliters per second per square meter.
Support Super Large Size Combined Assembly
Model 220, the maximum size of a single set can reach 6 x 5 meters
The combination of products can be determined according to different sizes. When matched with windproof roller shutters around, it can be transformed into an ecological sun room, or even various application scenarios such as a multi-functional outdoor office area, live broadcast room, restaurant, and chess and card room.
A Variety of Styles and Multiple Matching Ways
Matching Instructions:
Aluminum alloy pavilions have strong adaptability. In addition to: external water grooves, Roman columns, windproof roller shutters, lamp posts, and fan lights, they can also be equipped with: wind, light and rain sensors, intelligent controls, glass, grilles, heaters, colorful lights, and so on.
Note: The additional products are not included in the price of the pavilion and need to be charged separately or purchased and installed by the customer themselves.

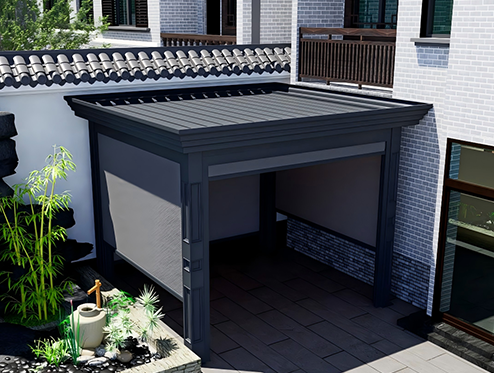

Install Additional Enclosures
Install Grilles and Movable Shutters
Install European-style External Water Tanks, Roman Columns, Windproof Roller Shutters Around, and Chinese-style Grilles Screens
Install Additional Glass
Installation Type:
Aluminum alloy pavilions can be installed in various types according to different sites and sizes. common types include standard four-column type, single-side wall-mounted type, column-free type, large-size multi-set splicing type, large-size multi-column type, and ultra-long beam splicing type, etc.
Application Scenarios

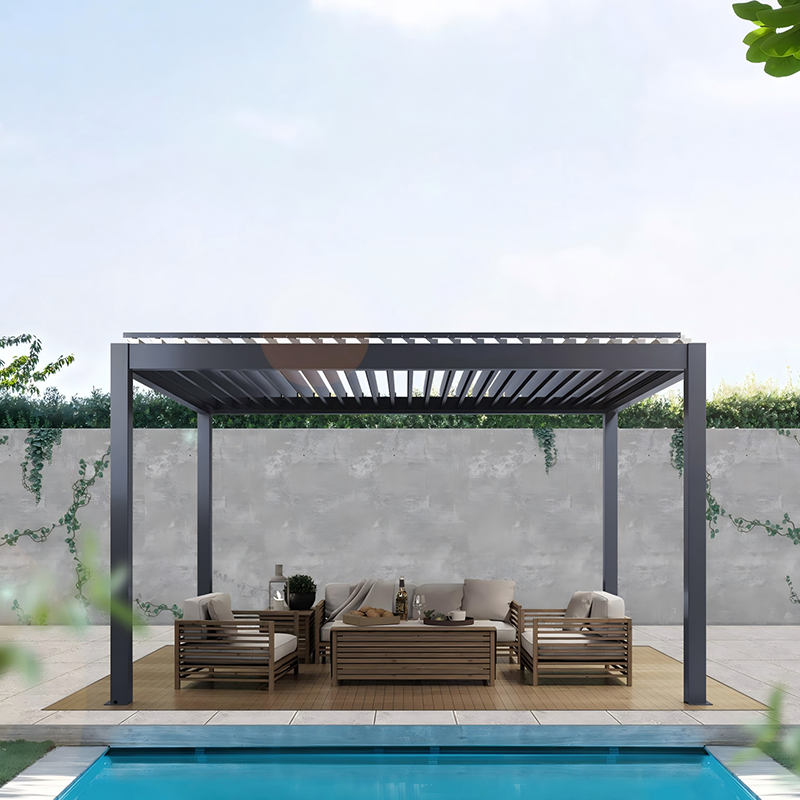

Villa residence/swimming pool/garden courtyard/balcony and terrace/home stay leisure/outdoor dining
Full Scenario Adaptability: Covering scenarios such as courtyard leisure, commercial outdoor seating, scenic area supporting facilities, and camping bases; supporting customization of materials (aluminum alloy/solid wood/PC panels), sizes, and functional modules; with properties of sunshade, rainproof, snowproof, and ventilation; adapting to different climates and usage needs.
Cutting-edge R&D Technology: Adopting anti-corrosion and rust-proof aluminum alloy frames paired with high-transmittance PC solid polycarbonate panels, achieving a 98% UV resistance rate and a wind resistance rating of over Level 10, with durability exceeding 15 years; optional intelligent sunshades, ambient lights, and spray systems are available, and some models support electric opening and closing, featuring easy operation and energy efficiency.
Endorsed by Benchmark Collaborations: Having served clients such as overseas resorts, chain restaurants, and high-end communities, these cases have achieved a 35% increase in revenue from commercial outdoor seating and a 40% increase in tourists’ stay duration at scenic spots, earning recognition for repeat purchases from clients in multiple countries.
